Technical Data Sheet
HVMIX® 80/60 STEEL FIBRE
HVMIX® 80/60 Steel Fibre is a cold drawn wire steel fibre designed for structural concrete reinforcement. It offers superior mechanical properties to enhance the performance and durability of concrete structures.
Reference Standards
- EN 14889-1: 2006 – Fibres for concrete — Part 1: Steel fibres – Definitions, specification and conformity;
- EN 14651-2005 – Test method for metallic fibred concrete – Measuring the flexural tensile strength (limit of proportionality (LOP), residual).
- ASTM A820: 2001 – Standard Specification for Steel Fibers for Fiber-Reinforced Concrete.

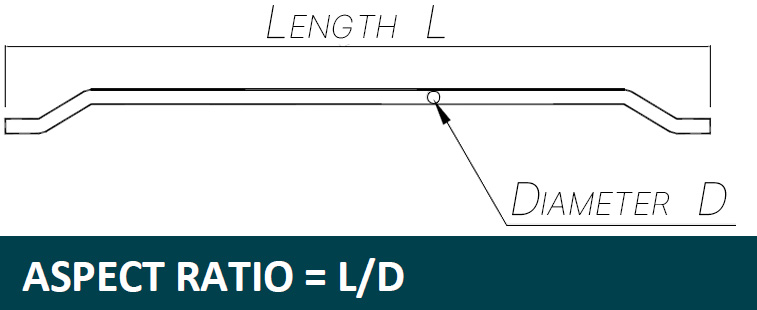

Nominal Dimensions
- Diameter (D): 75 mm
- Length (L): 60 mm
- Aspect Ratio (L/D): 80
- Number of Fibres per kg: 4600
Mechanical Properties
- Tensile Strength (Rm): 1100 MPa (minimum)
- Ultimate Strain (ΔL): < 4%
Design Dosages
- Slab on Grade: Minimum dosage of 15 kg/m³
- Slab on Pile: Minimum dosage of 30 kg/m³
Packaging
- HVMIX® 80/60 steel fibre are delivered in paper bag of 20 kg.
- 1 pallet = 1200 kg.
Storage
- Preserved the pallets from rain, water or extreme humidity.
- Do not stack the pallets on top of each other.
